Description

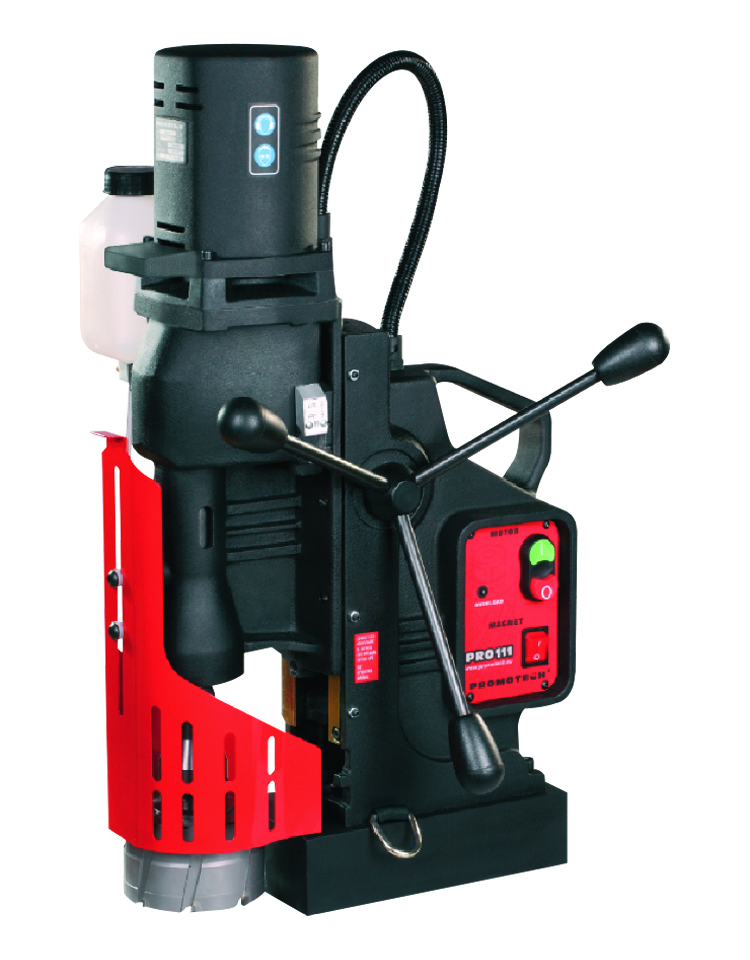

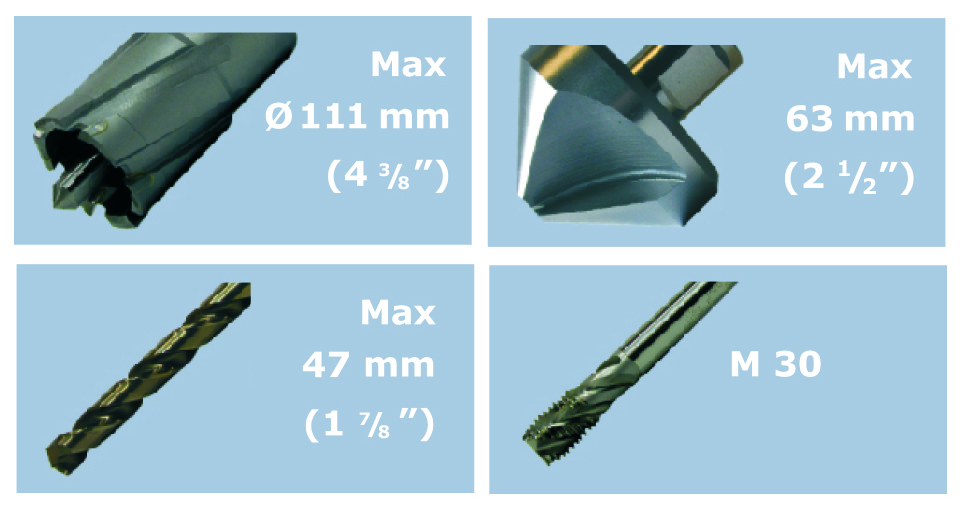

PRO 111 is the newest heavy duty machine with Morse Taper No. 4. It is designed for cutting holes up to 111 mm (4-3/8") diameter or drilling holes up to 47 mm (1-7/8") diameter. It has got 4-speed mechanical gear box.

PRO 111 is equipped with motor overload protection system with LED indicator. Its precision and durability are significantly increased thanks to the one piece gearbox housing and slide.

Unique semi-automatic gib adjustment (Promotech’s patent pending) enables simple, fast and repeatable regulations without any expert knowledge or experience. Replaceable spline at the end of armature shaft eliminates laborious and expensive armature maintenance. Compact design allows for drilling very close to vertical surface.

PRO 111 is equipped with electromagnetic base featuring magnetic field shape control system (MFSC) and magnetic power adhesion control module (MPAC), which detects adhesive force of electromagnetic base and protects both the machine and the operator from work on too thin workpieces.

Standard shipping set of PRO 111 includes MT4 Arbor with 3/4" (19 mm) Weldon Bore that accept cutters up to 2-5/16" (60 mm) diameter. Optional MT4 Arbor with 32 Weldon Bore for cutters of larger diameter is available.
