Drilling Machine
-
Brand:PROMOTECH
-
Model:PRO 36
-
Tool holder:19 mm (3/4") Weldon
-

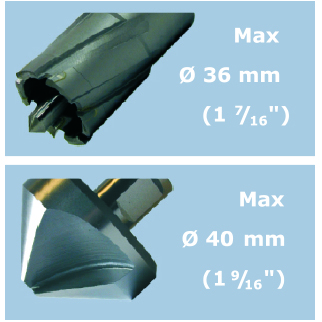

Milling cutter (Core drill) Ø:max 35 mm (1 3/8")
-
Countersinking Ø:max 40 mm (1 9/16")
-
Stroke:70 mm (2 3/4")
-
Max dept of cut:51 mm (2")
-
Voltage:115V/60Hz or 230V/50Hz
-
Power consumption [W]:1000
-
Motor Power [W]:920
-
Speed [rpm]:350
-
Overload Protection:yes - 115V/60Hz | no - 230V/50Hz
-
MPAC (Magnetic Power Adhesion Control):yes
-
MFSC (Magnetic Fiend Shape Control):yes
-
ESB (Energy Saving Base):yes
-
Magnetic clamping force [N] (25mm, Ra-1,25):9500
-

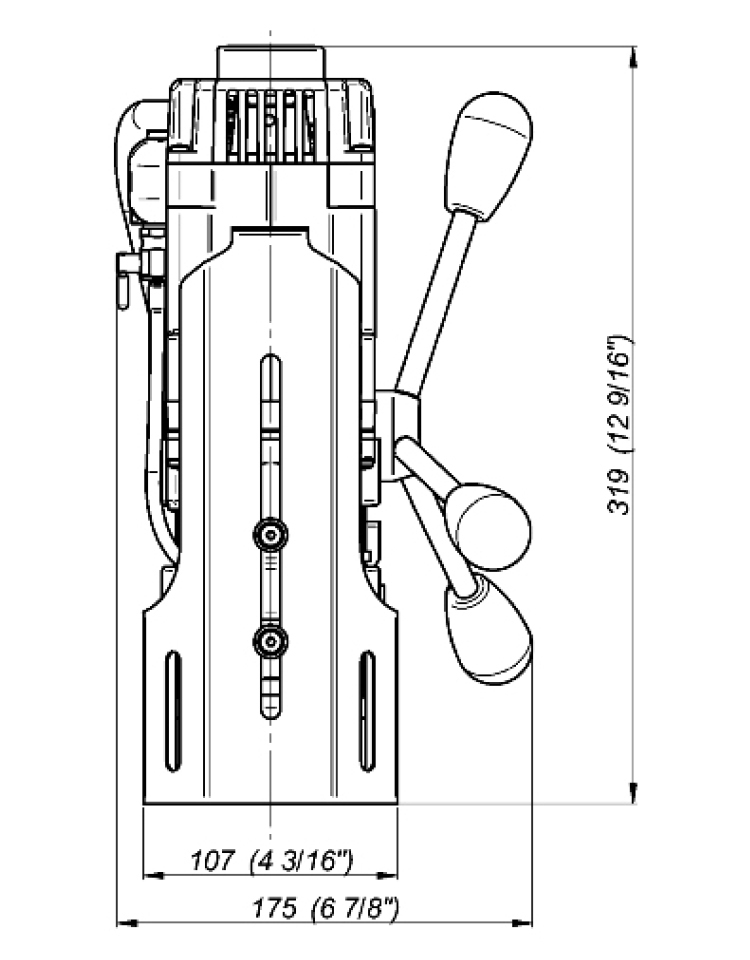

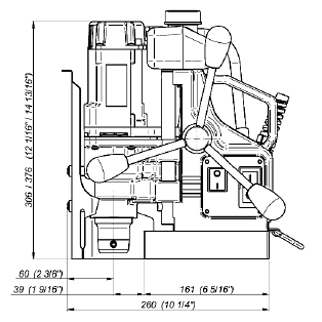

Magnet Base Dimensions:80 x 160 x 36.5 [mm] | 3 1/8 x 6 5/16 x 1 7/16 ["]
-
Min. Workpiece Thickness:6mm (1/4")
-
Weight:10kg
-
Country of Manufacture:POLAND
Description

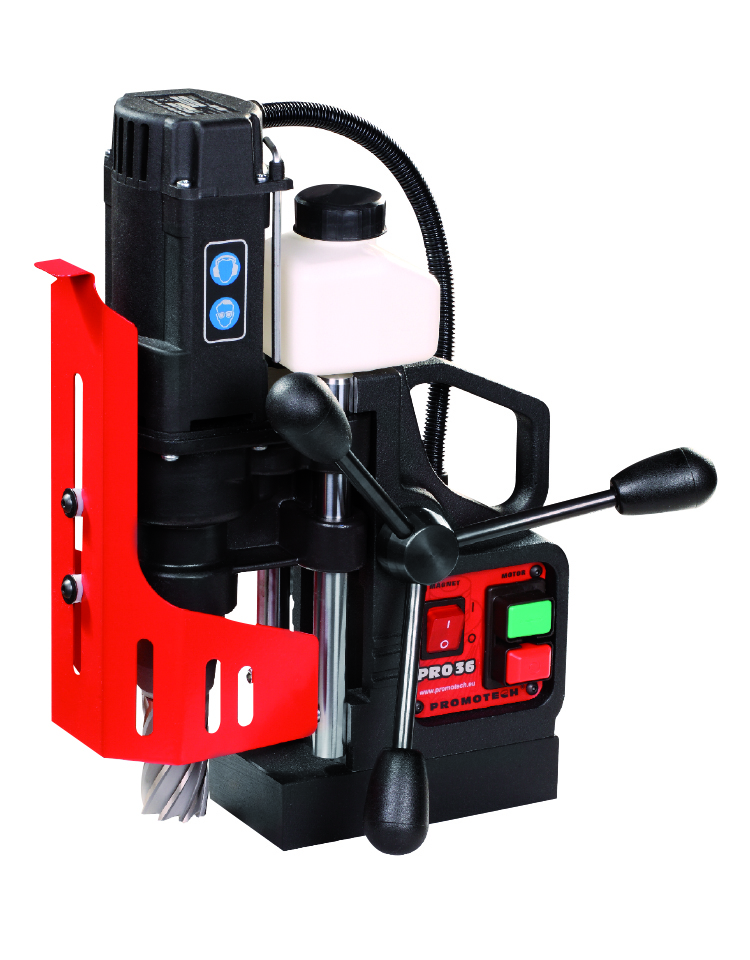

The most compact drill press designed by Promotech, and one of the smallest drills in the world.Superior features:
- ultra lightweight
- easy handling
- maintenance free rail guide system.
PRO 36 is equipped with the latest generation of electromagnetic
- energy saving base (ESB)
- magnetic field shapecontrol system (MFSC)
- magnetic power adhesion control module(MPAC),
It includes also motor overload protection system.
