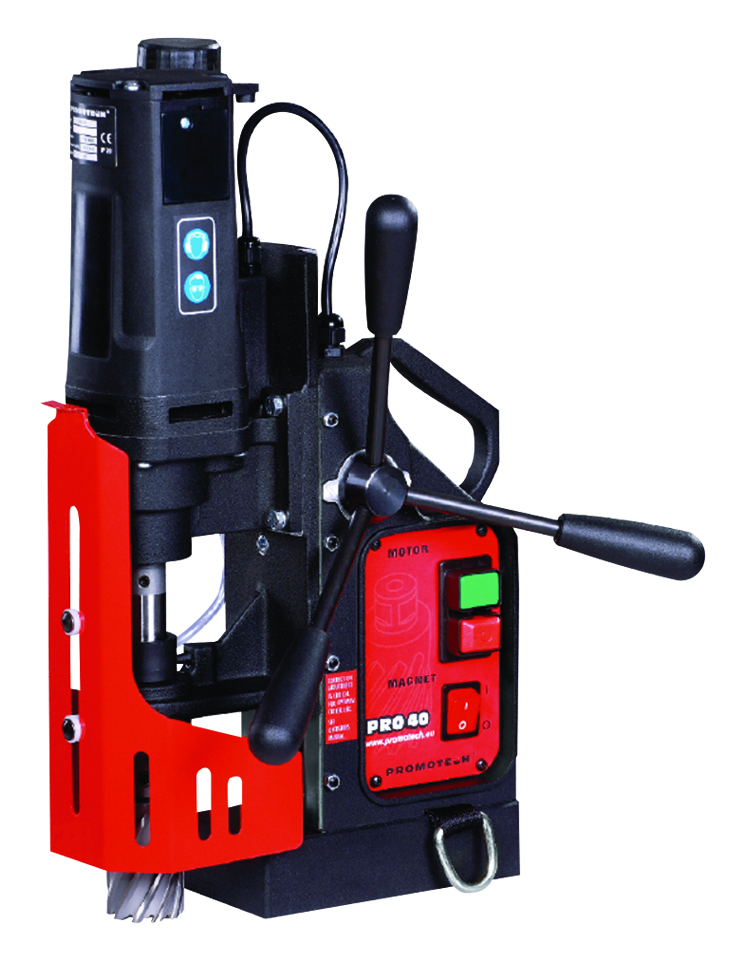

Drilling Machine
-
Brand:PROMOTECH
-
Model:PRO 40
-
Motor Speed (under load):440 [rpm]
-
Motor power:1020 [W]
-
Weight:12.7kg (27 lbs 6 oz)
-

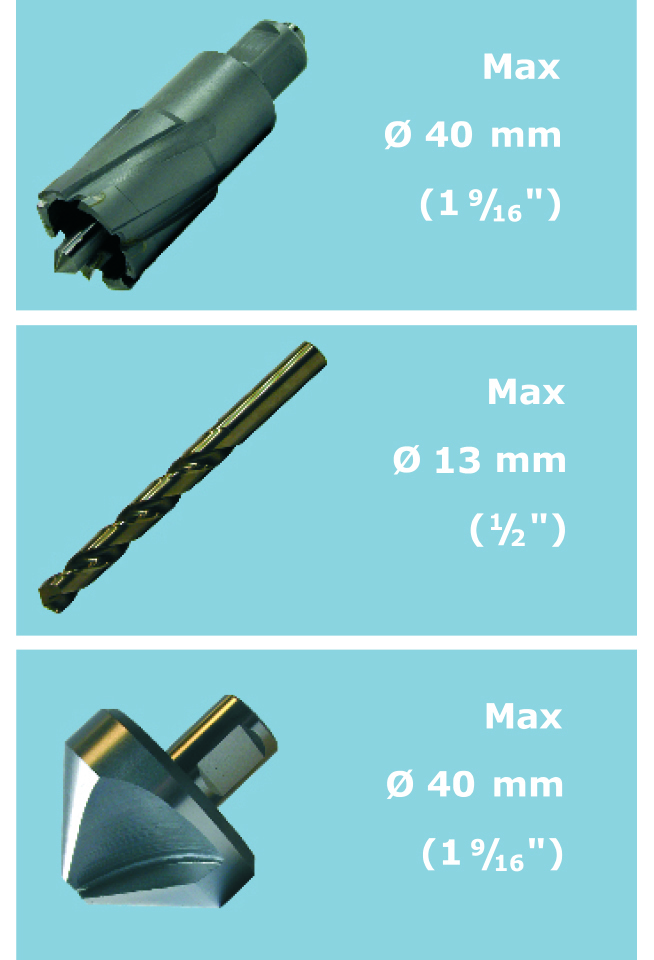

Max milling capacity:Ø 40 mm (1 9/16")
-
Max drilling capacity:Ø 13 mm (1/2")
-
Max countersinking:Ø 40 mm (4 7/16")
-
Stroke:124 mm (4 7/16")
-
Max depth of cut:51 mm (2")
-
Power supply:115V/60Hz or 230V 50/60Hz
-
Power consumption:1100 [W]
-
MPAC (Magnetic Power Adhesion Control):yes
-
MFSC (Magnetic Field Shape Control):yes
-
ESB (Energy Saving Base):yes
-
Magnetic clamping force:9.800 [N] (25mm, Ra-1.25)
-
Magnetic Base dimensions:84 x 168 x 41.5 [mm]; 3 5/16 x 6 5/8 x 1 5/8 ["]
-
Min. Workpiece Thickness:6mm (1/4")
-
Tool holder:19mm (3/4") Weldon
-
Country of Manufacture:POLAND
Description
Lightweight, one speed and reliable machine which has been proven on many industrialized markets all over the world.It can mill/cut up to 40 mm (1 9/16") and drill up to 13 mm (1/2").
PRO 40 is equipped with the latest generation of electromagnetic energy saving base (ESB) with magnetic field shape control system (MFSC) and magnetic power adhesion control module (MPAC), which measures adhesive force of electromagnetic base and prevents both the machine and the operator from work on workpieces which do not provide enough grip for the magnetic base.
