Beveling Machine
-
Brand:PROMOTECH
-
Model:BM-16
-
Power supply:220-240V / 50-60 Hz or 110-120V / 60Hz
-
Motor:2200W
-
Spindle speed (without load):1800-5850 rpm
-
Max. bevel width:b=16mm (0.63", Fig.1)
-
Bevel angle (depending on milling head):B=22.5°, 30°, 37.5°, 45°, 55°, 60° (Fig.1)
-
Minimal diameter of countersinking:ca 40 mm (1.57’’)
-
Rounding edges:R3, R4, R5 (Fig. 2)
-
Dimensions (L x W x H):585 mm (23.0’’) × 156 mm (6.1’’) × 238 mm (9.4’’) 10
-
Weight (without milling head):10 kg (22 lbs)
-
Product code (220-240 VAC):PMT-UKS-0509-10-20-00-0
-
Country of manufacture:POLAND
Description

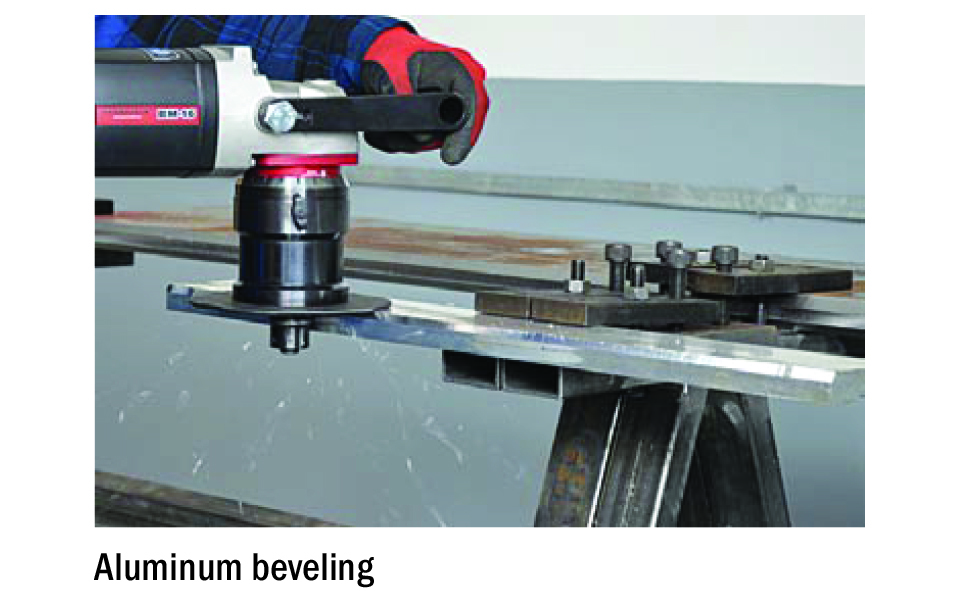

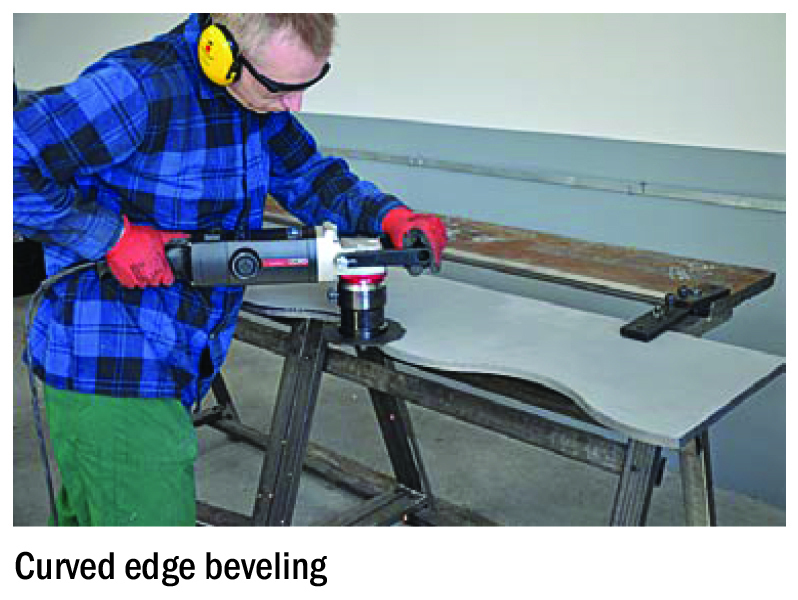

Portable, handy beveling machine is designed for milling edges of plates and pipes made of steel, aluminum alloys, brass, or plastic.BM-16 is equipped with continuous bevel width adjustment, overload protection and electronic speed control for use on a variety of materials.
It is highly efficient machine for edge weld preparation and rounding off steel construction before painting or coating.
